MIM-316L
MIM-316L is a molybdenum-containing austenitic stainless steel. The addition of Mo provides superior pitting and chloride corrosion resistance compared to 304L. It is one of the most commonly used MIM materials in the 3C industry due to the excellent polishing properties，non-magnetic properties, and high ductility.
Product Specifications
Chemical Composition (wt%)
|
C |
Ni |
Cr |
Si |
Mn |
Mo |
Fe |
|
≤0.03 |
10.0-14.0 |
16.0-18.0 |
≤1.0 |
≤2.0 |
2.0-3.0 |
Bal. |
Physical Properties
|
Item |
Value |
Value |
|
Tap Density |
≥4.8 g/cm³ |
|
|
D10 |
2-3 μm |
2.5-3.5 |
|
D50 |
8-10 μm |
10-12 |
|
D90 |
22-26 μm |
26-30 |
Feedstock Parameters
|
Parameter |
Unit |
Typical |
Range |
Method |
|
MFR |
g/10min |
1100 |
1100-1800 |
ISO 1133 (190℃, 21.6kg) |
|
Green Density |
g/cm³ |
5.35 |
5.3-5.4 |
ISO 3369 |
|
Sintered Density |
g/cm³ |
≥7.80 |
7.75-7.85 |
ISO 3369 |
|
Tooling Factor |
— |
1.165 |
1.163-1.168 |
— |
Sintered Part Properties
|
Property |
As-Sintered |
|
Density (g/cm³) |
≥7.80 |
|
Tensile Strength (MPa) |
≥500 |
|
Yield Strength (MPa) |
≥180 |
|
Elongation |
≥50% |
|
Hardness (HV1) |
120-180 |
Typical Applications
Consumer Electronics
Phone frames, SIM trays, camera brackets
Watch Components
Watch cases, clasps, bands
Medical Devices
Corrosion-resistant precision medical parts
Food & Chemical Processing
Valves, fittings

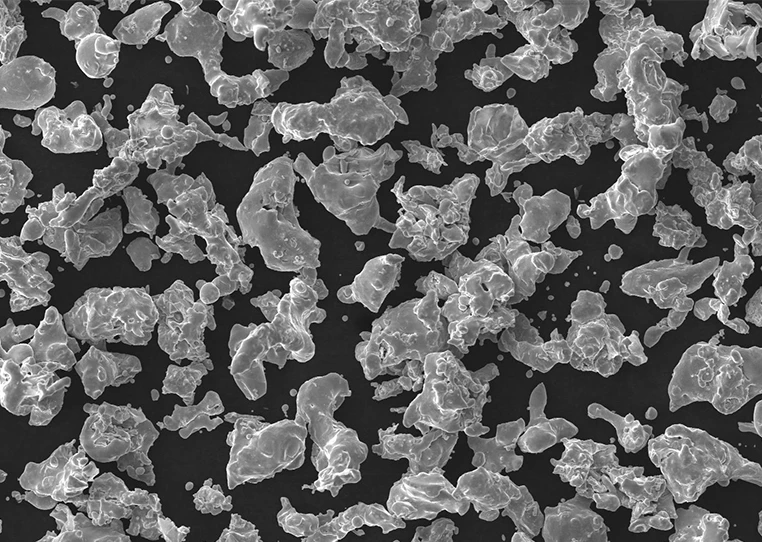

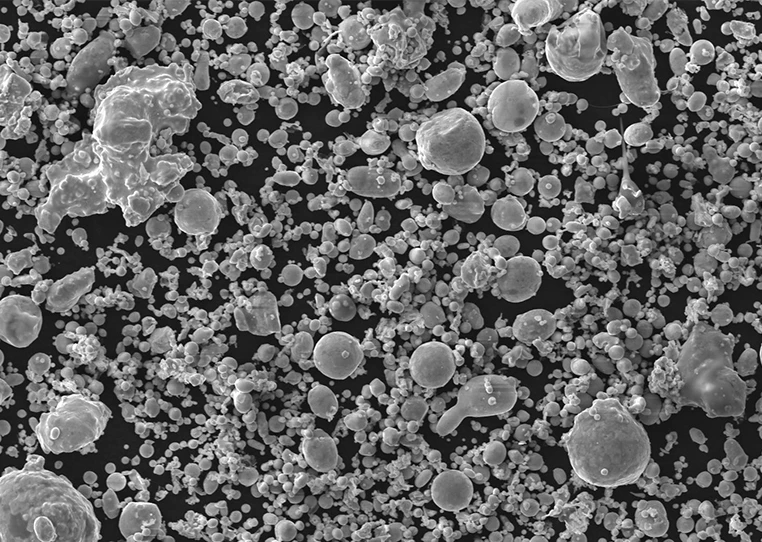

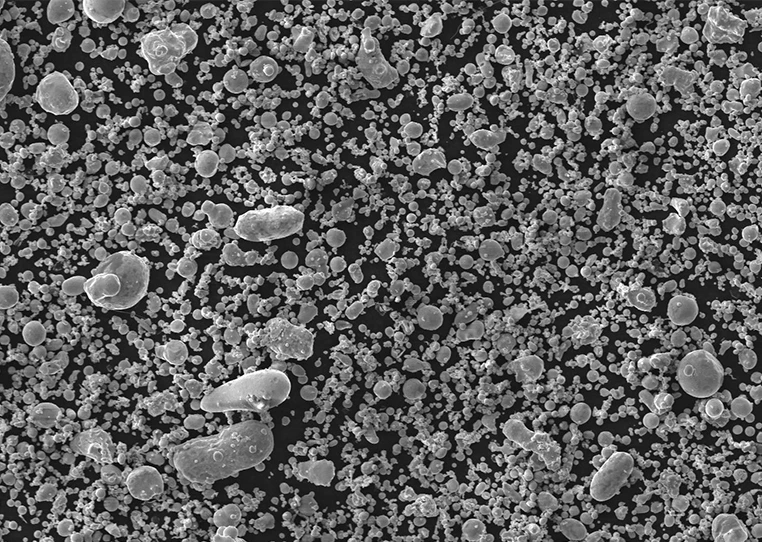

Product Photos
