MIM-304 Hardened
MIM-304 Hardened is based on 304L through microalloying(adding Nb) to refine the grains and adjust the Cr and Ni content at the same time, so that 304L can maintain good corrosion resistance while improving strength and hardness. It is suitable for applications that require both 304-level corrosion resistance and higher hardness.
Product Specifications
Chemical Composition (wt%)
|
C |
Ni |
Cr |
Si |
Mn |
Nb |
Fe |
|
0.05-0.08 |
9.5-12 |
19.0-20.0 |
≤1.0 |
≤2.0 |
0.8-1.2 |
Bal. |
Physical Properties
|
Item |
Value |
|
Tap Density |
≥4.8 g/cm³ |
|
D10 |
2.0-3.0 μm |
|
D50 |
7.5-8.5 μm |
|
D90 |
18-22 μm |
Sintered Part Properties
|
Property |
As-Sintered |
|
Density (g/cm³) |
≥7.80 |
|
Tensile Strength (MPa) |
≥550 |
|
Yield Strength (MPa) |
≥180 |
|
Elongation |
≥35% |
|
Hardness (HV1) |
180-200 |
Compared with 304L, tensile strength is increased by approximately 10%, and hardness is improved by 20–50 HV, while maintaining sufficient ductility.
Typical Applications
Corrosion-resistant scratch-resistant cosmetic parts
High-strength electronic connectors
Precision medical device components

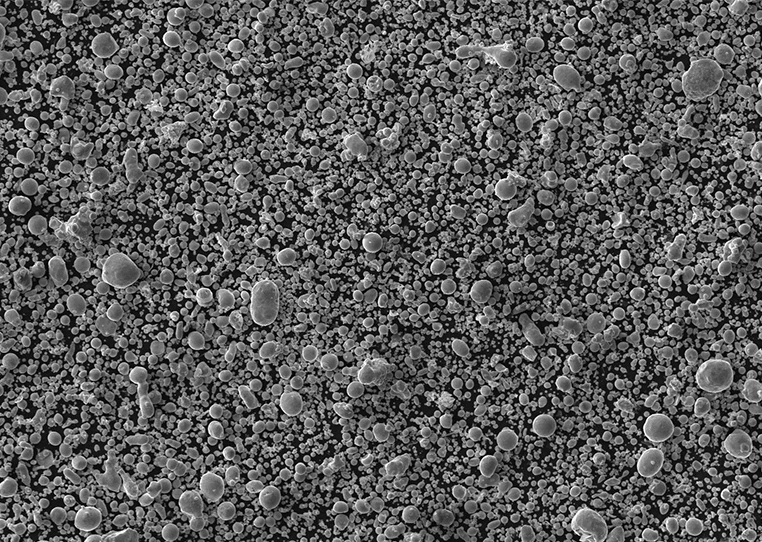

Product Photos
Contact Me Here With Any Other Questions
Contact our experts and we can take care of all your formwork needs from scratch.
Let us help you with your project.
Copyright @ Hebei Jingye Additive Manufacturing Technology Co., LTD. All Rights Reserved
Navigation
Navigation
Contact Us
Tel.: +86 0311 8289 8906 / +86 150 3207 1231
E-mail: jyzczz@hbjyjt.com
Fax: 0311-82898906
Address: Jingye Industrial Park, Nandian Town, Pingshan County, Shijiazhuang City, Hebei Province, China
